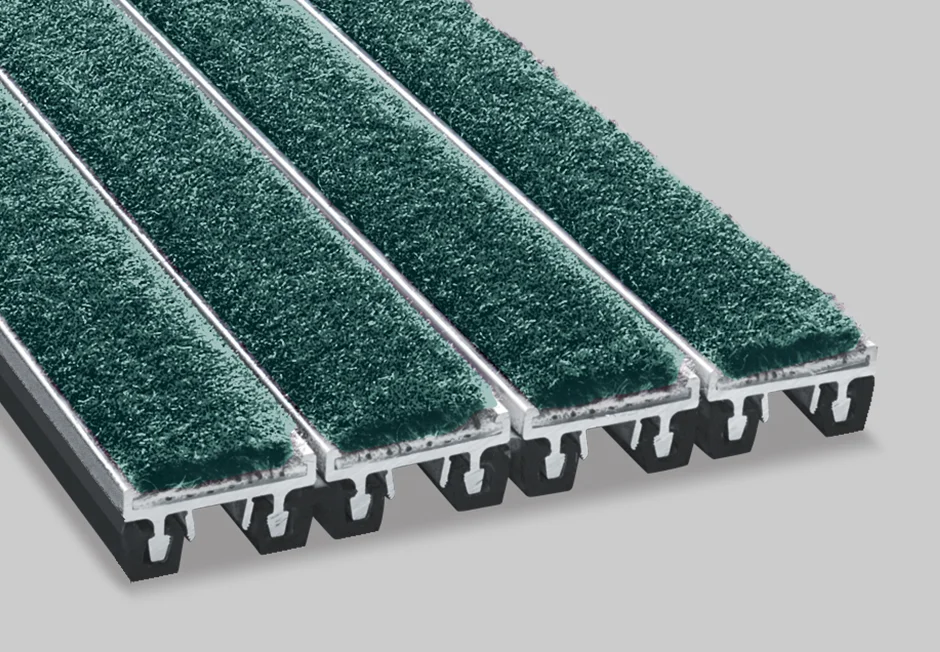

PediTred® (G4) is the industry's strongest architectural entrance grid capable of handling rolling loads up to 1,000 lbs. per wheel. It traps dirt and debris at the door, rolls back for easy cleaning and is the ideal choice for all building types.
< BACK
Features
Can be recessed or surface mounted
Available in 3/4" (19.1mm) profiles
Aluminum tread rails
Completely customizable
Slip resistant
For new construction or existing recesses
PVC-free hinges and supports
Choose from six effective tread options
Available with a variety of frames, with or without drain pans.
Applications
Vestibules, Interior & exterior entries
Building Segments
Aviation & Transportation
Education
Healthcare
Office & Mixed Use
Retail & Hospitality
Senior Living
Sports & Entertainment
Benefits
Grid system rolls back for easy cleaning
Traps dirt & debris at the door
Excellent shoe-cleaning & traction capability
Smooth rolling surface, solid feel underfoot.
Due to the differences between monitors, the colors above may vary when specifying. Request color samples.
McCrann Cyrus MFG reserves the right to make design changes or to withdraw any design without notice.
Product Details
Available in 3/4" grid depth
Product weight: 2.67 lbs/sq ft, 3.31 lbs/sq ft & 3.39 lbs/sq ft
1 1/2" (38.1mm) O.C. tread spacing
1,000 lbs/wheel rolling load capacity
Mounting Options
Surface mounted: Tapered aluminum frame, Carpet transition frame, Threshold frame (LP only). Recessed mounted: Tapered angle frame or Level base frame
Insert Options
Heavy-duty carpet
Exterior carpet
Recycled rubber
Abrasive
Poured abrasive
Rubber
Logo mat available
Certifications
Static Coefficient of Friction Test
Radiant Flux of Floor Covering Test
PediTred Radiant Panel Flammability Test
PediTred Smoke Density Test
Cradle-to-Cradle CertifiedTM Silver
PediTred CDPH 01350 v1.2 Test Certificate
LEED compliant
PVC-free
Indoor air quality pollutant contro
Rail/Frame Finish Options
Mill
Anodize: clear, bronze, & black only
Powder coat
Warranty
Two-Year Limited Warranty
